The Hollow Integrated Type is a product that can be installed on the customer's rotating shaft. All necessary components, such as rings and brushes, are integrated, allowing for easy installation and reducing the labor required for design and assembly.
-
Slip ring for high speed data communication
Supported communication standards: CC-LINK, CompoNet, DeviceNet, Ethernet/IP ■SpecificationsNumber of poles: 2 to 24 polesVoltage: AC200V, DC24VAllowable current: 10AAllowable rotation speed: 300rpmInner diameter/outer diameter: 40mm/120... -

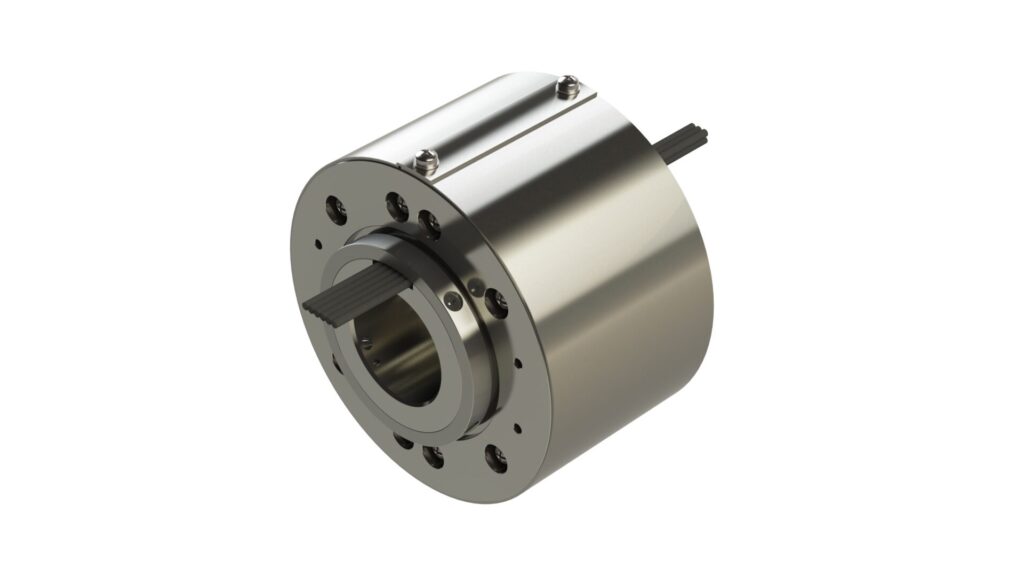

SRC120
This is a standard product with an inner diameter of 40 mm and 20A compatibility. ■SpecificationsNumber of poles: 2 to 24 polesVoltage: AC/DC 220V or lessAllowable current: 20AAllowable speed: 800rpmInner/outer diameter: 40mm/120mmEnviro... -
SRC110
This is a standard product with an inner diameter of 50 mm and compatible with 10A. ■SpecificationsNumber of poles: 2 to 32 polesVoltage: AC/DC 220V or lessAllowable current: 10AAllowable speed: 800rpmInner/outer diameter: 50mm/110mmEnvi... -

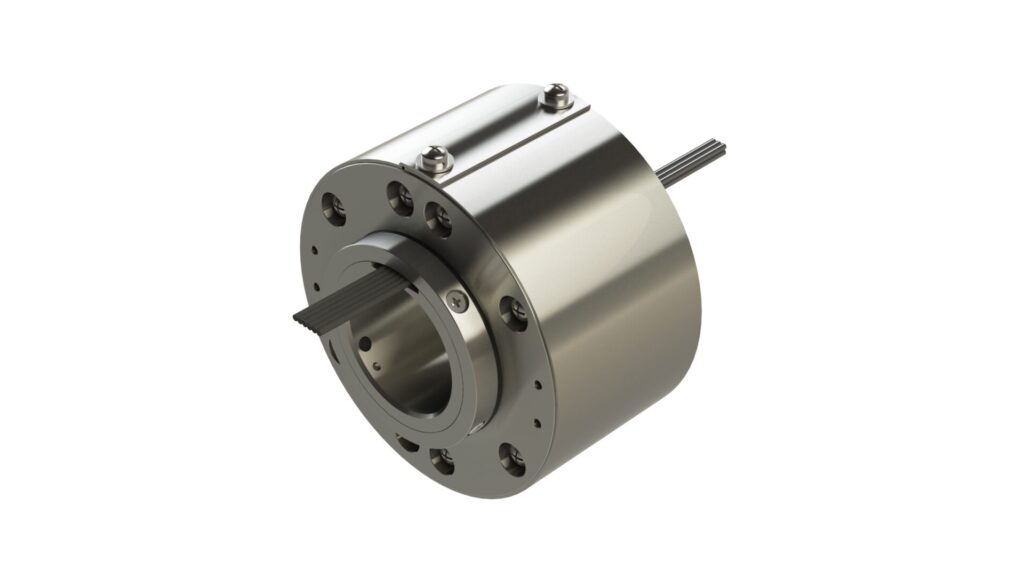

SRC100
This is a standard product with an inner diameter of 40 mm and compatible with 10A. ■SpecificationsNumber of poles: 2 to 32 polesVoltage: AC/DC 220V or lessAllowable current: 10AAllowable speed: 500rpmInner/outer diameter: 40mm/100mmEnvi... -

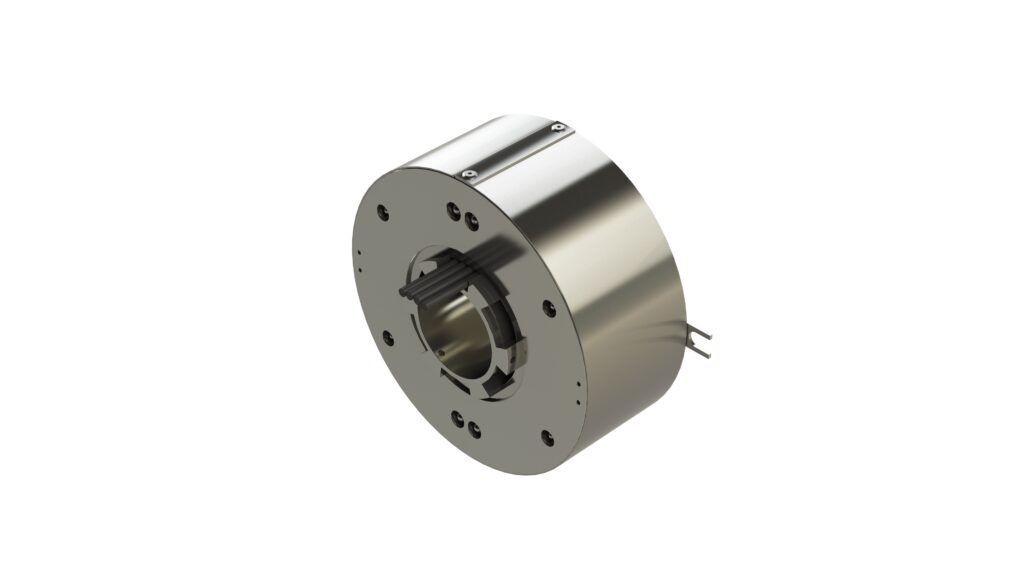

HA-N060G190A060
This is a semi-custom product with an inner diameter of 60 mm and 60A compatibility. It can be used for a wide range of applications, from power to signals and high-speed data communications. ■SpecificationsNumber of poles: 6 to 72 poles... -

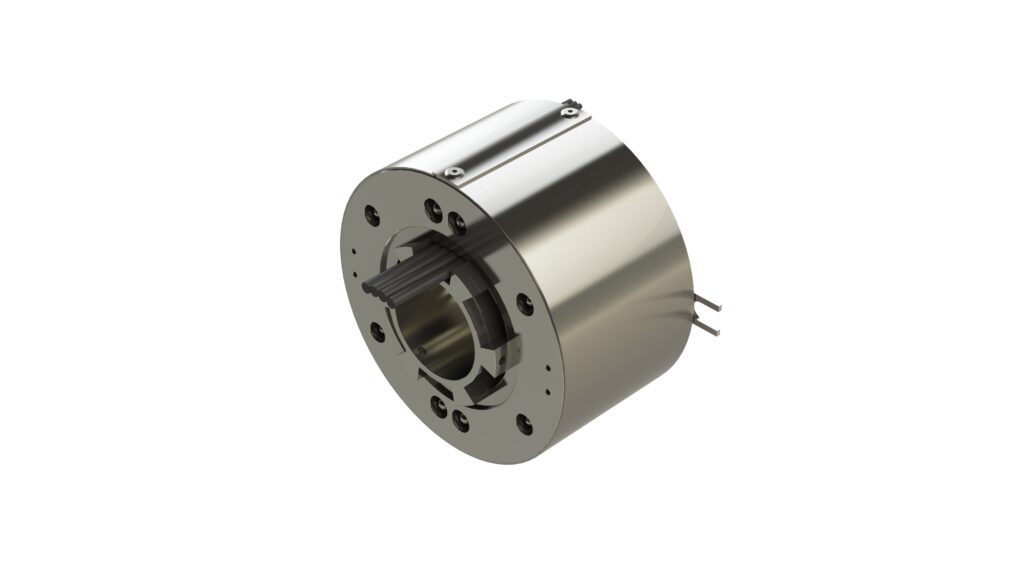

HA-N050G140A040
This is a semi-custom product with an inner diameter of 50 mm and a capacity of 40A. It can be used for a wide range of applications, from power to signals and high-speed data communications. ■SpecificationsNumber of poles: 6 to 72 poles... -

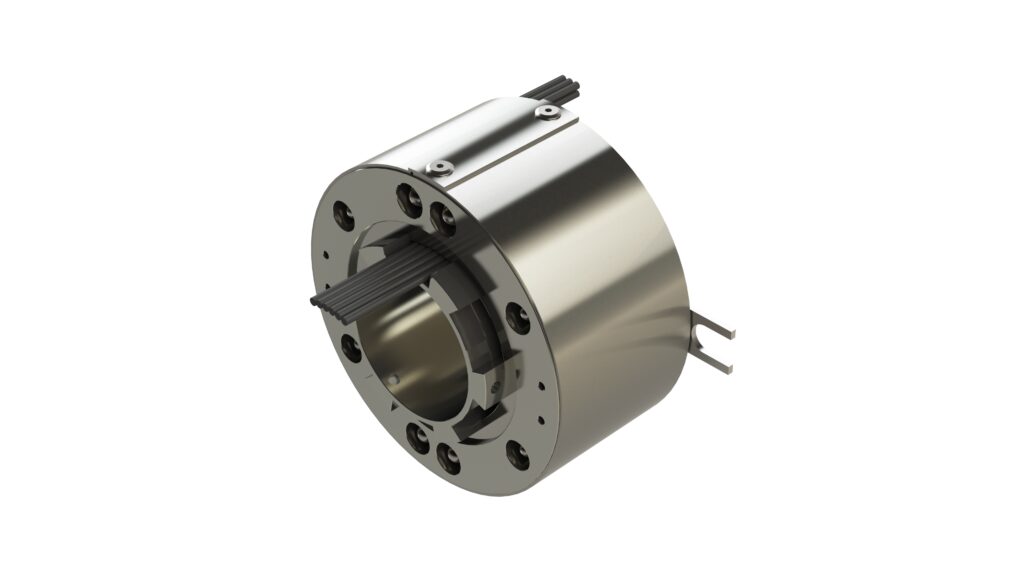

HA-N050G110A020
This is a semi-custom product with an inner diameter of 50 mm and a capacity of 20A. It can be used for a wide range of applications, from power to signals and high-speed data communications. ■SpecificationsNumber of poles: Compatible wi... -

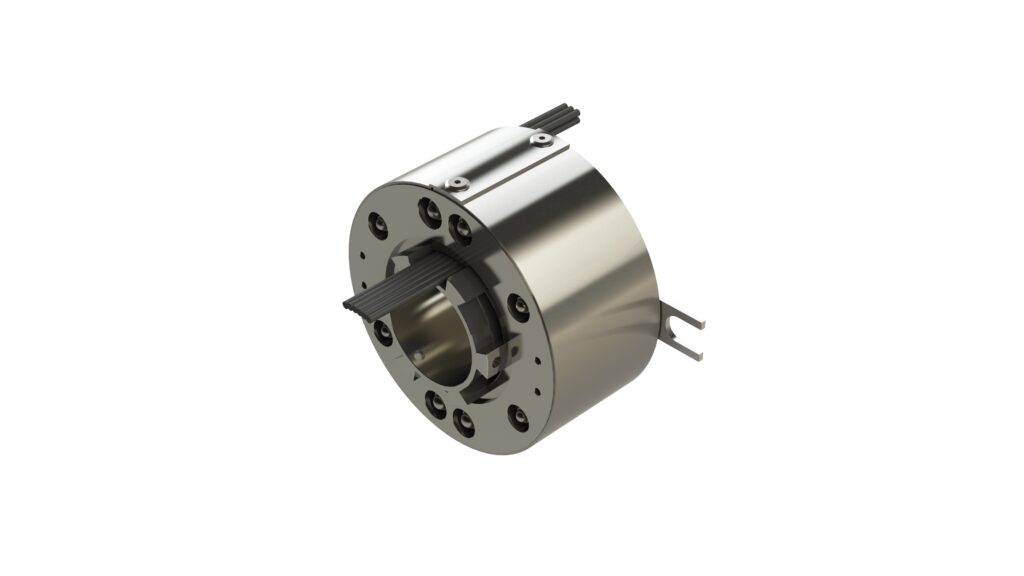

HA-N040G100A020
This is a semi-custom product with an inner diameter of 40 mm and a capacity of 20A. It can be used for a wide range of applications, from power to signals and high-speed data communications. ■SpecificationsNumber of poles: 6 to 48 poles...
