■Applications
A 3-pole slip ring that can be used to power a three-phase motor with a minimal configuration.
For medium capacity (20A) heaters

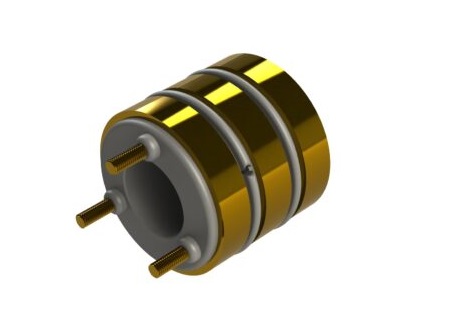

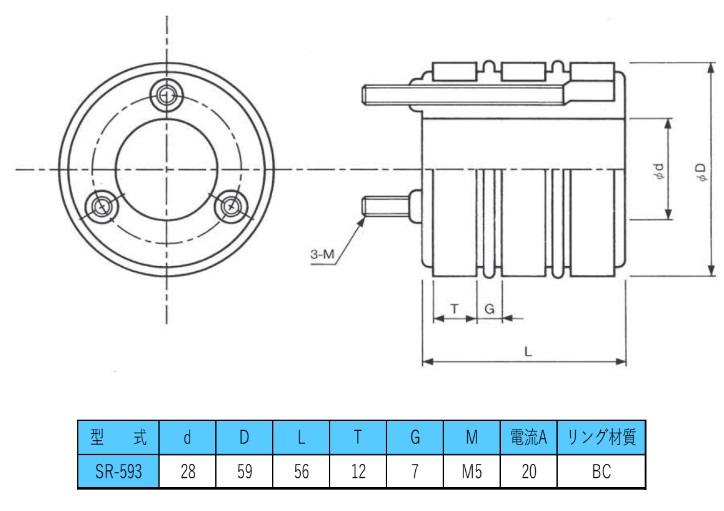

3-pole molded slip ring
■Applications
A 3-pole slip ring that can be used to power a three-phase motor with a minimal configuration.
For medium capacity (20A) heaters
| Voltage | AC200V DC100V |
|---|---|
| 許容電流 | 20A |
| Insulation resistance | 50MΩ (500V) or more |
| Poles | 3 |
| Rotation Direction | CW-CCW |
| Permitted Rotational Speed | 200rpm |
| Heat resistance | Max 180℃ |
| Molding material | Premix Resin |
