This is a single-pole rotary connector that does not use mercury, a hazardous substance.
By implementing a highly reliable liquid gallium alloy, we have achieved maintenance-free operation for 100 million revolutions.
■Features
・Mercury-free
・Compliant with RoHS2 directive
・Achieves low torque and low noise with a non-contact structure.
The inside is protected by a sealed structure, so the customer does not need to cover it.
・Compact and high current
・Can be used in high temperature environments compared to mercury (+4 to +80℃)
・As this is a mercury-free product, it can be disposed of as normal industrial waste, reducing costs.
■Applications
Plating equipment, welding machines, and other rotating equipment that requires grounding

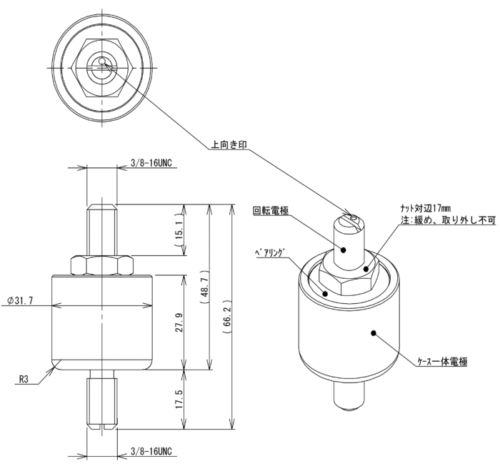

Poles | Length |
---|---|
1 | 66.2 |
Drawing PDF
