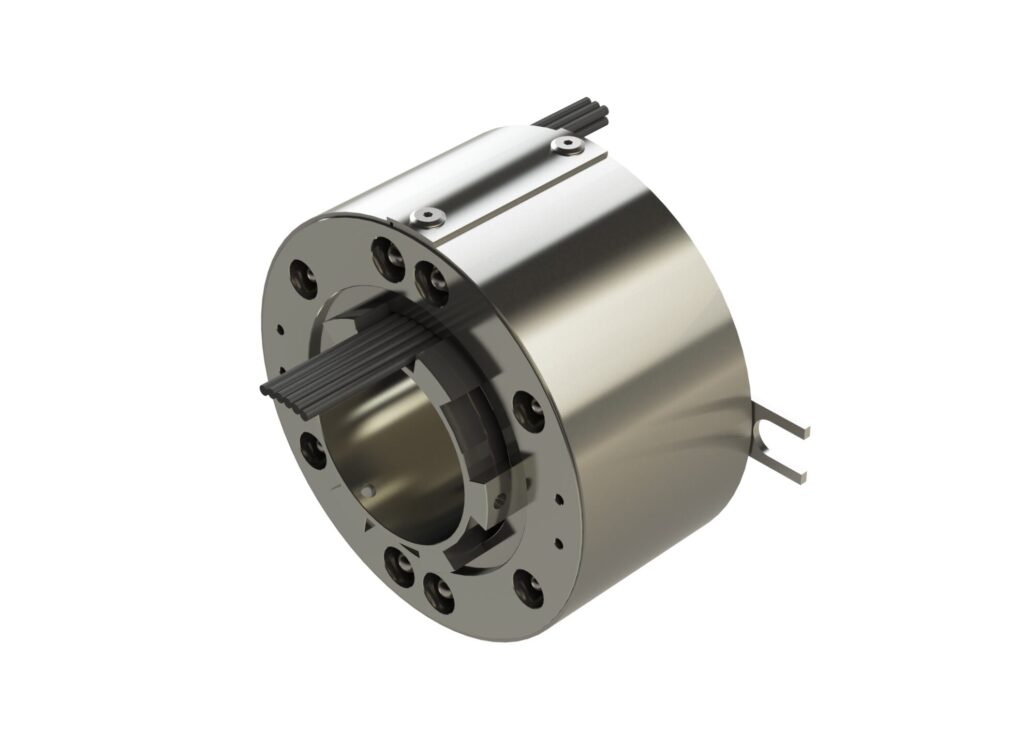

This is a semi-custom product with an inner diameter of 50 mm and a capacity of 20A.
It can be used for a wide range of applications, from power to signals and high-speed data communications.
■Specifications
Number of poles: Compatible with 6 to 48 poles
Voltage: AC/DC 220V or less
Allowable current: 20A
Allowable speed: 800rpm
Inner/outer diameter: 50mm/110mm
Environmental compatibility: RoHS2 compliant
*Membership registration is required to download CAD data.
specification
スクロールできます
| Part number | HA-N050G110A020 |
|---|---|
| Inner diameter | 50 |
| Outside diameter | 110 |
| Maximum number of poles | 48 |
| Voltage | 220V |
| Allowable current | 1～20A |
| Signals (analog signals such as strain gauges) | 〇 |
| Thermocouple (using K compensation wire) | 〇 |
| Communication Circuit | 〇 |
| Permitted Rotational Speed | 800 |
| Rotational Life | 60 million |
| Maintenance Cycle | 10 million |
| Rotation direction | CW-CCW Index |
