Slip ring for high speed data communication

Supported communication standards: CC-LINK, CompoNet, DeviceNet, Ethernet/IP

■Specifications
Number of poles: 2 to 24 poles
Voltage: AC200V, DC24V
Allowable current: 10A
Allowable rotation speed: 300rpm
Inner diameter/outer diameter: 40mm/120mm
Environmental compatibility: RoHS2 compliant

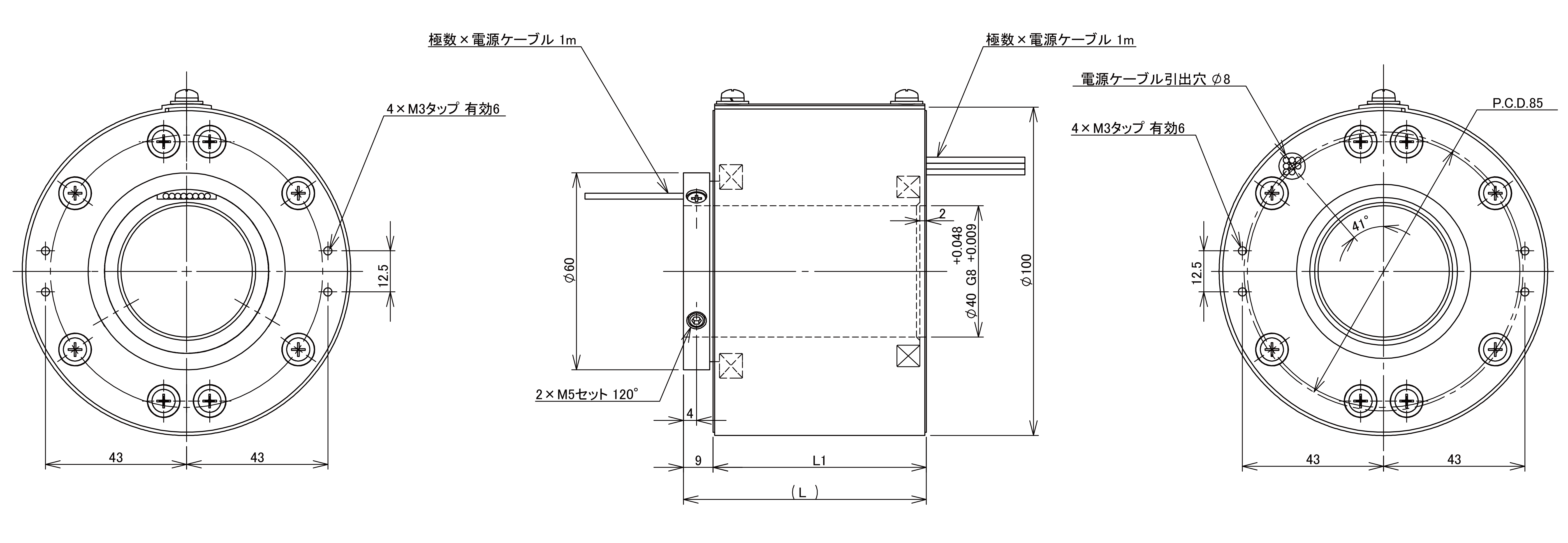

specification
